Are you curious about those seemingly mysterious' high-voltage DC generators'? What role do they play in the modern power industry? Today, we will embark on an in-depth exploration and unveil its veil for you.

What is a high-voltage DC generator?

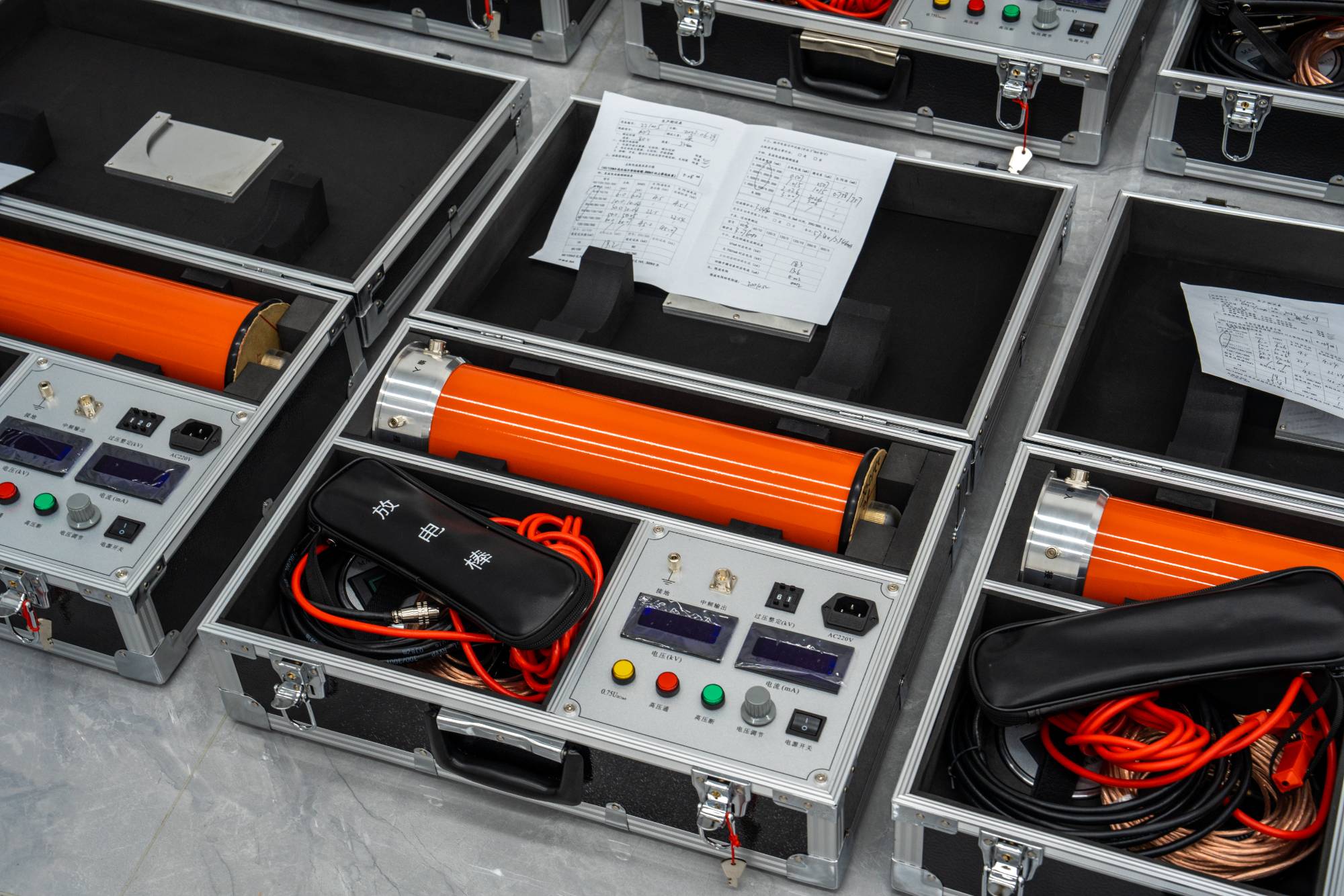

Simply put, a high-voltage DC generator is a device capable of generating high-voltage direct current. Its core function is to convert low-voltage direct current (usually from mains or batteries) through a series of boosting and rectification processes into stable direct current with extremely high voltage. It is an indispensable key equipment in the fields of insulation testing of power equipment, cable withstand voltage testing, and scientific research.

Key factors affecting the performance of high-voltage DC generators

Selection and design of insulation materials: High voltage means a strong electric field, and good insulation is the key to preventing breakdown.

Power supply stability: Fluctuations in the input power supply directly affect the stability of the output voltage.

Cooling system: Long term operation will generate a large amount of heat, and effective cooling can ensure the long-term reliable operation of the equipment.

The precision of the control system: Accurate voltage regulation and protection functions are the foundation for ensuring testing safety and accuracy.

Powerful tool for empowering high-voltage DC generators

In practical applications, we can use various tools to optimize the performance and user experience of high-voltage DC generators:

Precision measuring instruments, such as high-precision digital multimeters, oscilloscopes, etc., are used for real-time monitoring of output voltage and current.

Professional software: used for automation control, data recording, and analysis. Wuhan UHV Power Technology Co., Ltd. provides a lot of support in this area, and its solutions are widely praised in the field of power equipment testing.

Advanced testing platform: Combined with a high-voltage DC generator, a complete voltage withstand test solution can be constructed.

How does a high-voltage direct current generator work?

Its working principle can be summarized as follows:

Step up: Use a transformer or voltage doubling circuit to increase the input low voltage direct current.

Rectification: Filter out AC components to obtain pure DC electricity.

Filtering and voltage stabilization: further smoothing voltage fluctuations and stabilizing them at the set target value.

In the design and manufacturing of high-voltage DC generators, Wuhan UHV Power Technology Co., Ltd. ensures the excellent performance and reliability of its products with its profound technical accumulation and rigorous processes.

How can we do better?

In order to improve the application effect of high-voltage DC generators, we can:

Choose the appropriate model: Based on the specific requirements of the DC withstand voltage test, select equipment that matches the voltage level and power.

Standardized operation: Strictly follow the operating procedures to ensure the safety of personnel and equipment.

Regular maintenance: Regularly inspect and maintain equipment to extend its service life.

Pay attention to technological development: Understanding the latest technological trends, such as new methods for cable insulation diagnosis, can help us better utilize these devices.

FAQ

What are the main applications of high-voltage DC generators? Mainly used for insulation performance testing, partial discharge measurement, and high voltage experiments in power equipment such as transformers, cables, switches, etc.

Why is a high-voltage DC generator needed for testing? High voltage direct current can effectively expose defects in insulation materials of power equipment, such as insulation aging, impurities, etc., in order to evaluate their long-term operational reliability.

What are the safety precautions for using a high-voltage DC generator? It is necessary to strictly follow safety operating procedures, such as wearing insulated gloves, insulated shoes, setting warning signs in high-voltage areas, and fully discharging the equipment after the operation is completed.

How to determine whether the high-voltage direct current generator is qualified? Professional DC withstand voltage tests can be used to test the stability and accuracy of its output voltage, as well as whether there is leakage, overload protection, and other functions that are normal.

What is the role of a high-voltage DC generator in cable testing? In cable insulation testing, a high-voltage DC generator is used to apply high DC voltage to detect whether there is a risk of breakdown or early signs of deterioration in the cable insulation layer, ensuring the safety of power transmission.
