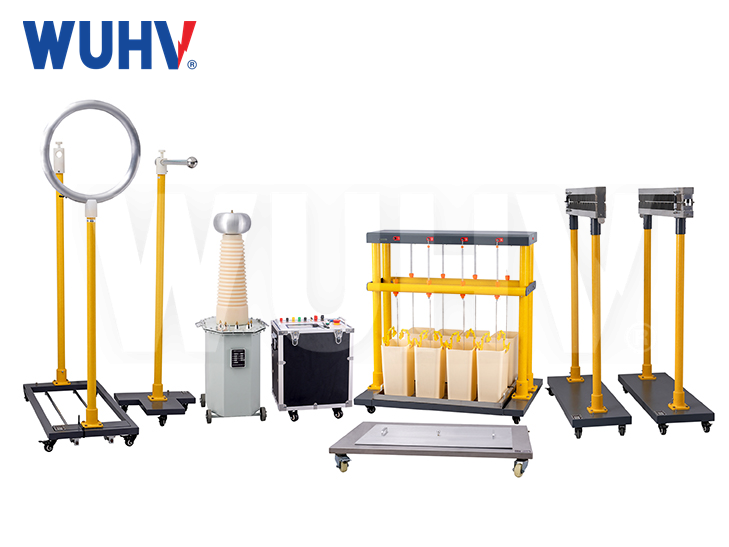

The Automatic Insulation Boots & Gloves Withstand Voltage Test Device is a high-precision electrical safety testing system designed to verify the dielectric strength and leakage current performance of insulating boots and insulating gloves used by electrical workers. This equipment ensures compliance with international safety standards (IEC 60903, ASTM F1116, OSHA 1910.137, GB/T 17622) to prevent electrical accidents.
Key Features & Technical Specifications
1、Fully Automated Testing Process
One-Touch Operation – The system automatically performs voltage ramp-up → withstand voltage test → ramp-down → pass/fail judgment with minimal manual intervention.
Programmable Test Parameters – Adjustable test voltage (0-30kV or higher), duration (1-5 minutes), and leakage current thresholds.
Intelligent Safety Protection – Features emergency stop (E-stop), overcurrent protection, automatic discharge, and real-time fault detection.
2、High-Voltage Testing Capabilities
AC/DC Withstand Voltage Testing – Supports both AC high-voltage (up to 30kV) and DC voltage testing for comprehensive insulation evaluation.Precision Leakage Current Measurement – Monitors microampere (µA) leakage current to detect insulation degradation.
Gradual Voltage Ramp-Up – Prevents sudden voltage spikes that could damage test samples.
3、Multi-Functional Test Modes
Insulating Gloves Test Mode – Submerges gloves in conductive water and applies high voltage between internal/external electrodes.
Insulating Boots Test Mode – Fills boots with water electrode and tests dielectric strength under high voltage.
Custom Test Profiles – Save and recall different test configurations for various PPE standards.
4、Advanced Safety Mechanisms
Grounding & Discharge System – Automatically discharges residual voltage after testing.
Protective Interlocks – Prevents operation if the test chamber is open.
Alarm & Fault Indication – Audible/visual alerts for overcurrent, flashover, or insulation failure.
Compliance with International Standards
ThisAutomatic Insulation Boots & Gloves Withstand Voltage Test Devicemeets the testing requirements of:
IEC 60903 (Live Working – Electrical Insulating Gloves)
ASTM F1116/F1117 (Standard Specification for Dielectric Footwear)
OSHA 1910.137 (Electrical Protective Equipment)
GB/T 17622 (Insulating Gloves for Electrical Purposes)
EN 60903 (European Standard for Insulating Gloves)
Applications
1、Power Utilities – Routine testing of insulating gloves & boots for maintenance crews.
2、Electrical Contractors – Ensures PPE safety before high-voltage work.
3、Manufacturers – Quality control for insulating PPE production.
4、Laboratories & Certification Centers – Standard-compliant dielectric testing.
Why Choose ThisAutomatic Insulation Boots & Gloves Withstand Voltage Test Device?
1、Fully Automated – Reduces human error and improves efficiency.
2、High Accuracy – Precise voltage control (±1%) and leakage current detection.
3、Enhanced Safety – Multiple protection mechanisms for operator safety.
4、Data Logging & Reports – Stores test results and generates compliance certificates.
